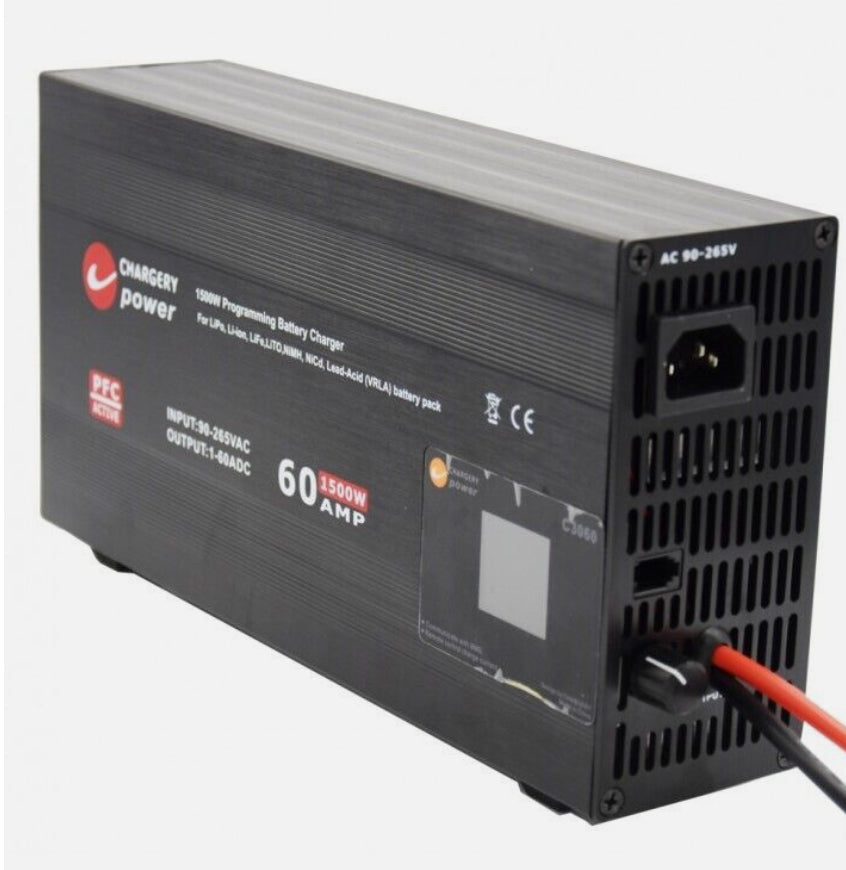

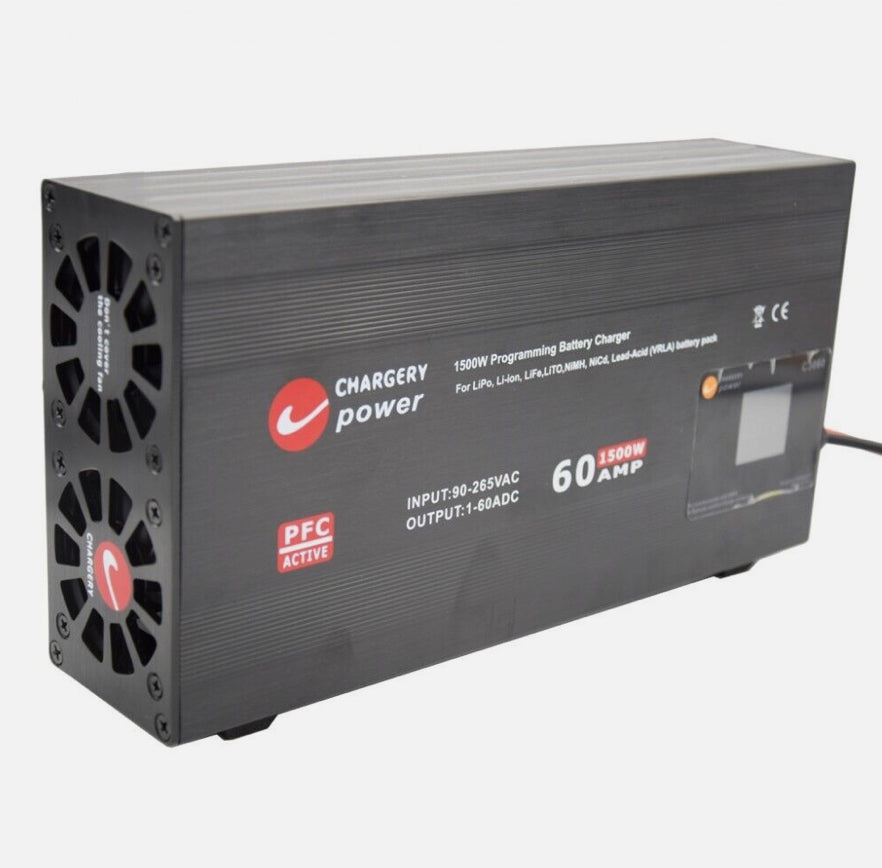

8S 60A 1500W LiPo/LiFe/LiTo Battery Charger(power cable not included)

Power Cable for AC not included

• C3060A-----Remote control charge current

The Battery Charger has been designed to provide reliable, quality charging for battery systems in electric drive vehicles.  It can charge up to 8S LiFe battery at 60A , 1500W at AC90V~265V in a smaller size. Many creative technology help to realize up to 94% of efficiency, and the internal temperature is still under 90℃. The following are some new features:

Features

• Intelligent control output voltage and current by microprocessor, 100% calibration before delivery
•  ±1% voltage and current accuracy
•  Active PFC: smaller AC input current less interference, and Conform to European Commission Regulation no 278/2009 and Energy Star Version 2.0
• AC 90-265V worldwide operation: need not any alternative switcher, worldwide safe operation.
• Low power consumption (less than 1W) at idle mode and standby mode
• Up to 94% of convert efficiency.
• Programmable output voltage from 10V to 30V
• Programmable output current from 1A to 60A

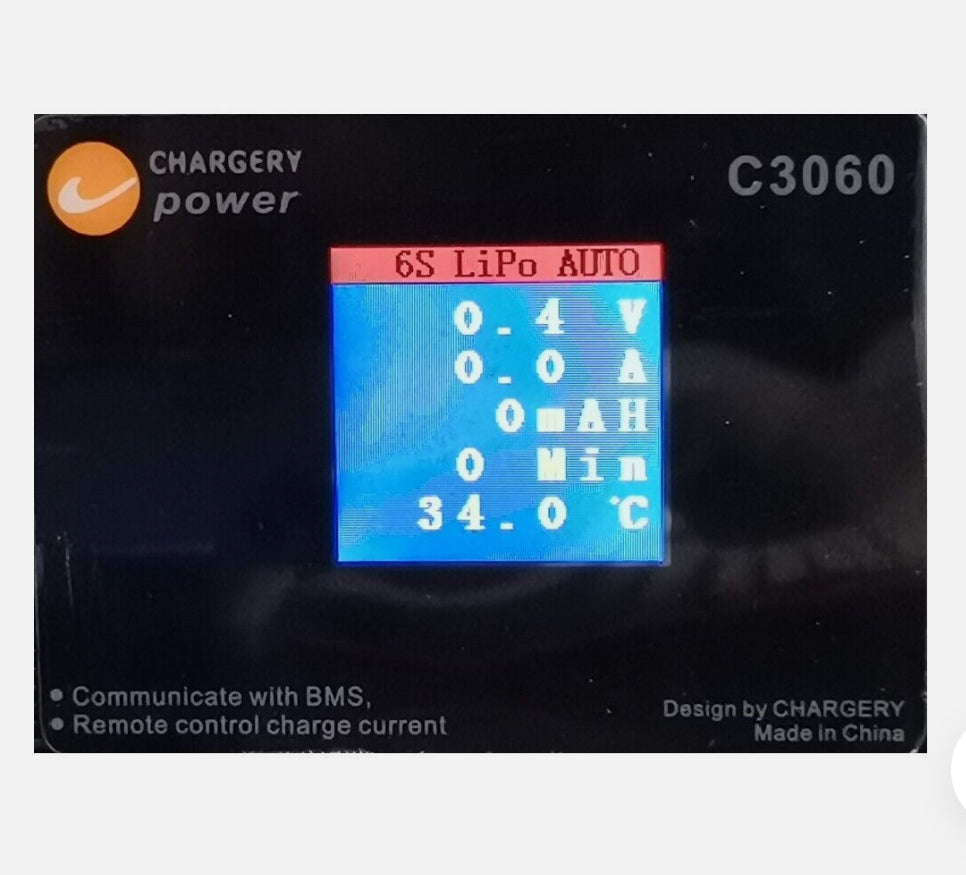

• TFT color LCD display output Voltage, current, power and internal temperature on time.
• Over current, over voltage, over load, over temperature, and short circuit protection
• Short-circuit protection on output, safer and more reliable.

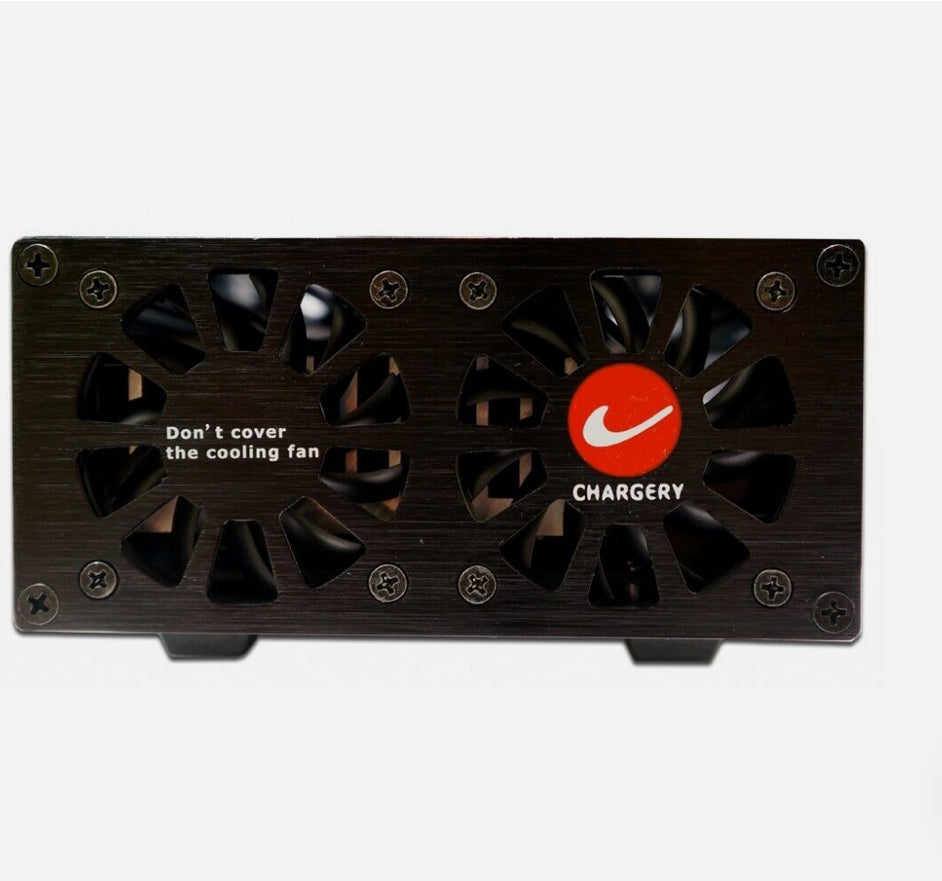

• 2 Intelligent cooling fans turned on and adjust speed upon the temperature automatically
• ZVS/ZCS and Synchronous Rectification assure the highest efficiency.
• High power density: 652W/Kg
• Approved by CE

Input

• Rated Voltage ： AC110 / 220V
• Voltage allowed：AC90 ~ 265V
• Rated Freq.   ：50/60Hz
• Freq. Allowed ：47~63Hz
• Max Current  :  18A @90V, 7.5A @220V
• Efficiency: 94% at 65% load and 220Vac input.
• Active PFC: PF>0.99 at 90VAC and 100% of load; PF>0.97 at 220VAC and 100% of load

Output   as Power Supply

• Voltage :10 ~ 30V programmed
• Voltage accuracy: ±1%
• Current accuracy: ±1%
• Ripple voltage: 150mV.
• Current：5 ~ 60A programmed
• Power: 1500W max.

Output   as Charger

• Charge current: 1-60A, 1500W max.

• Battery Type

Protection

• Over voltage protection,
• Under voltage Protection, battery voltage is under 2V, don’t charge.
• Over current protection,
• Over charge power protection, 1500W max.
• Over temperature protection, 90℃ max.
• Short- circuit protection on output.
• Anti spark on battery connection even 30V battery connect to charger
• Reverse polarity protection of battery connection
• Prevent any cell from over charging, adjust charge current automatically fit with Chargery BMS

Mechanical Characteristics

• Size：278*145*68 (L*W*H, mm) or 10.8 * 6.7 * 2.7 (L*W*H, inch)
• Weight: 2.46Kg without input cable
• Input power cable: AWG14 wire,  1.5m length
• Output DC connector: XT-90I male connector on C3060A
